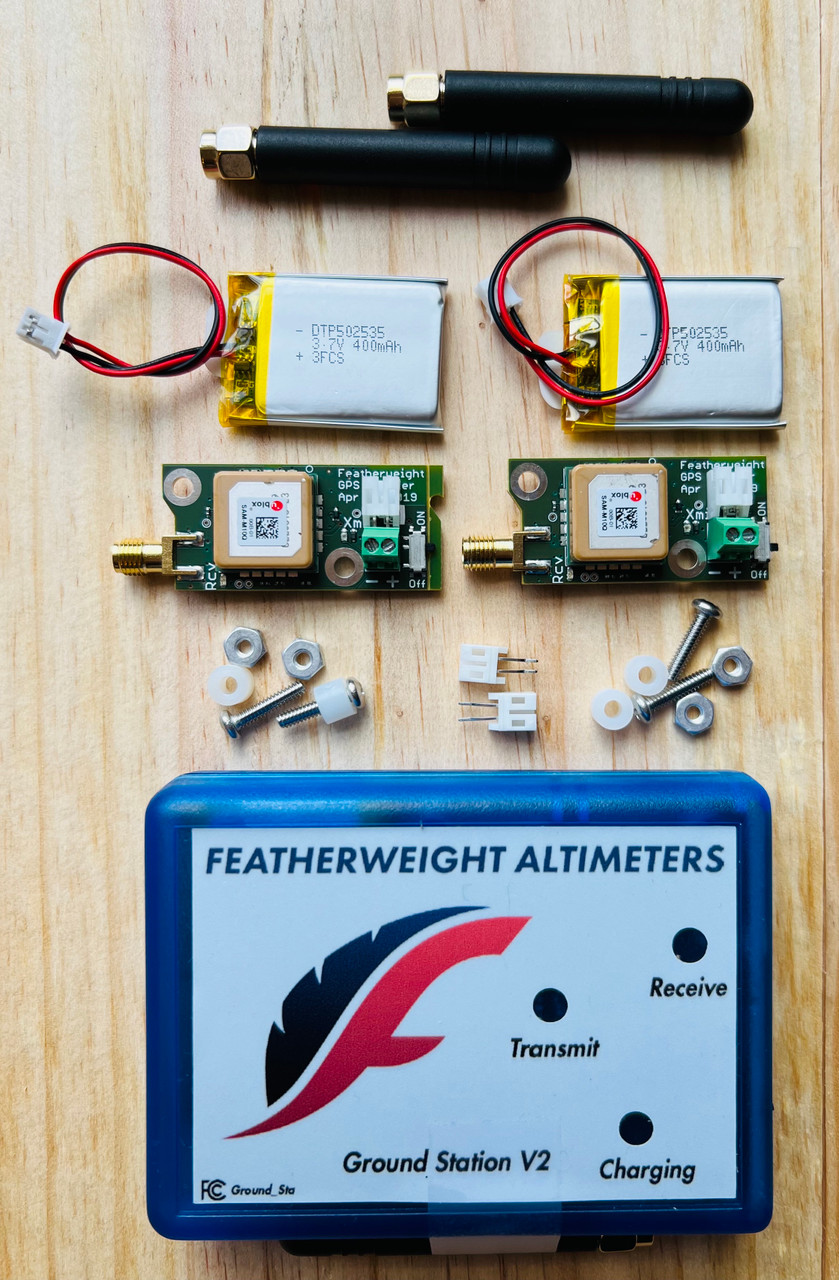

Featherweight GPS 3-unit system

(GS + 2 trackers + 2 batteries)

To track a rocket, two units are required: a Tracker that flies on the rocket and the Ground Station which stays with you on the ground and communicates with your iPhone.

Options:

• Tracker only - optional battery available here. Don't forget the optional battery charger available here (Lots of people place a second order to get one.) The wire whip antenna option has equivalent LoRa performance and the antenna can stick through bulkheads to save space.
• Ground Station only - features an internal battery, micro-USB interface, and pocket-sized enclosure.
• Full System - includes a ground station with included battery, a tracker, and an extra 400 mAhr tracker battery with battery adapter. Don't forget the optional dual battery charger available here. (Lots of people place a second order to get one.)
• 3-way system - includes everything in the Full System, plus another tracker and tracker battery so you can easily track 2 of your rockets without needing to swap hardware.

Features

Longest Radio Range  Yes, it really can communicate to space (though GPS data available to 262,467 feet). No directional antenna needed Robust margin for rocket body attenuation etc. No cell service required at the range.  Just download the app over WiFi at home and you're good to go.

Advanced GPS (u‑blox M8) Simultaneous reception of GPS, GLONASS, Galileo, and BeiDou constellations means more satellites for your tracker to choose from, giving you great reception wherever the antenna is pointed. 10 GPS solutions per second Vertical and horizontal velocity Reports positions up to 80 km (262,467) altitude and up to 500 meters/second (Mach 1.45)

iPhone Compatible iFIP iPhone app is now available via Apple's TestFlight app by clicking this link from your iOS device, after the TestFlight app is installed.

Free Over-the-Air Software Upgrades Buy in confidence now, knowing that additional features in the future are a button-click away Nothing to plug in and no websites to monitor, just turn on the tracker while in the phone app and it will let you know if updates are available.

Small Size and new Longer Battery Life 1.67" x 0.8" board size, not including antenna Tracker can run 16 hours on a small, 400 mAhr single LiPo cell. Ground station enclosure can stay up all weekend

Your Phone Points to Your Rocket App uses GPS location, compass and accelerometers to point to your rocket Real-time updates vertically and horizontally

Advanced Features

Spoken Telemetry (Done!) You phone tells you the flight information so you can keep your eyes on the sky

Data Logging Records GPS 3D velocity, location and signal strength at 10 samples per second for detailed post-flight analysis (Done!) Approved for use in Tripoli altitude record attempts Save as .kml file and plot in Google Earth (in progress)

Multi-Stage Flights (Done!) Monitor two or more stages with one phone app and one ground station. Easily switch channels to monitor each stage.

Over-the-Horizon Relay (Done!) Any Featherweight tracker with a line of sight will relay the location of a "lost "rocket

Public Telemetry (planned) Follow along with your friends' flight data with the press of a button LCO can monitor flight progress real-time

Estimated Landing Point (planned) Uses the GPS velocity from the last signal to estimate the last landing point Choose to track to the last data or the estimated landing
